figure — A formal figure, generally an illustration, with a title
figure ::=
addressanchorannotationbibliolistblockquotebridgeheadcalloutlistcautionclasssynopsiscmdsynopsisconstraintdefconstructorsynopsisdestructorsynopsisepigraphequationexamplefieldsynopsisfigureformalparafuncsynopsisglosslisthtml:formimportantindexterm (db.indexterm.endofrange)indexterm (db.indexterm.singular)indexterm (db.indexterm.startofrange)informalequationinformalexampleinformalfigureinformaltable (db.cals.informaltable)informaltable (db.html.informaltable)itemizedlistliterallayoutmediaobjectmethodsynopsismsgsetnoteorderedlistparaprocedureproductionsetprogramlistingprogramlistingcoqandasetremarkrevhistoryscreenscreencoscreenshotsegmentedlistsidebarsimparasimplelistsynopsistable (db.cals.table)table (db.html.table)tasktipvariablelistwarningcaption? (db.caption)Common attributes and common linking attributes.
Additional attributes:
Figure is a formal example with a title. Figures often
contain mediaobjects, or other large, display elements.
Frequently they are given IDs and referenced from the text with
XRef or Link.
Formatted as a displayed block.
Figures may contain multiple display elements. DocBook
does not specify how these elements are to be presented with respect
to one another.
DocBook does not specify the location of the figure within the final displayed flow of text; it may float or remain where it is located.
A list of figures may be generated at the beginning of a document.
Common attributes and common linking attributes.
Specifies style information to be used when rendering the float
FIXME:
Indicates if the element is rendered across the column or the page
Enumerated values: | |
|---|---|
| “0” | The element should be rendered in the current text flow (with the flow column width). |
| “1” | The element should be rendered across the full text page. |
These elements contain figure: annotation, answer, appendix, article, bibliodiv, bibliography, bibliolist, blockquote, callout, calloutlist, caption (db.caption), caution, chapter, colophon, constraintdef, dedication, entry, example, figure, footnote, glossary, glossdef, glossdiv, glosslist, html:fieldset, html:form, important, index, indexdiv, informalexample, informalfigure, itemizedlist, legalnotice, listitem, msgexplan, msgtext, note, orderedlist, para, partintro, preface, procedure, qandadiv, qandaset, question, refsect1, refsect2, refsect3, refsection, refsynopsisdiv, revdescription, sect1, sect2, sect3, sect4, sect5, section, setindex, sidebar, simplesect, step, taskprerequisites, taskrelated, tasksummary, td, textobject, th, tip, toc, tocdiv, variablelist, warning.
The following elements occur in figure: address, anchor, annotation, bibliolist, blockquote, bridgehead, calloutlist, caption (db.caption), caution, classsynopsis, cmdsynopsis, constraintdef, constructorsynopsis, destructorsynopsis, epigraph, equation, example, fieldsynopsis, figure, formalpara, funcsynopsis, glosslist, html:form, important, indexterm (db.indexterm.endofrange), indexterm (db.indexterm.singular), indexterm (db.indexterm.startofrange), info (db.titleforbidden.info), info (db.titleonlyreq.info), informalequation, informalexample, informalfigure, informaltable (db.cals.informaltable), informaltable (db.html.informaltable), itemizedlist, literallayout, mediaobject, methodsynopsis, msgset, note, orderedlist, para, procedure, productionset, programlisting, programlistingco, qandaset, remark, revhistory, screen, screenco, screenshot, segmentedlist, sidebar, simpara, simplelist, synopsis, table (db.cals.table), table (db.html.table), task, tip, title, titleabbrev, variablelist, warning.
<article xmlns='http://docbook.org/ns/docbook'>
<title>Example figure</title>
<figure xml:id="ex.pythagorean">

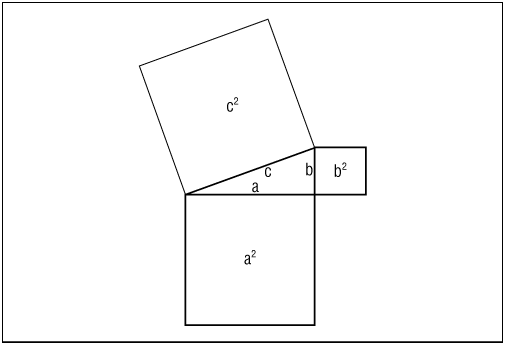

<title>The Pythagorean Theorem Illustrated</title>
<mediaobject>
<imageobject>
<imagedata fileref="figures/pythag.png"/>
</imageobject>
<textobject><phrase>An illustration of the Pythagorean Theorem</phrase></textobject>
</mediaobject>
</figure>
</article>
| | | |
